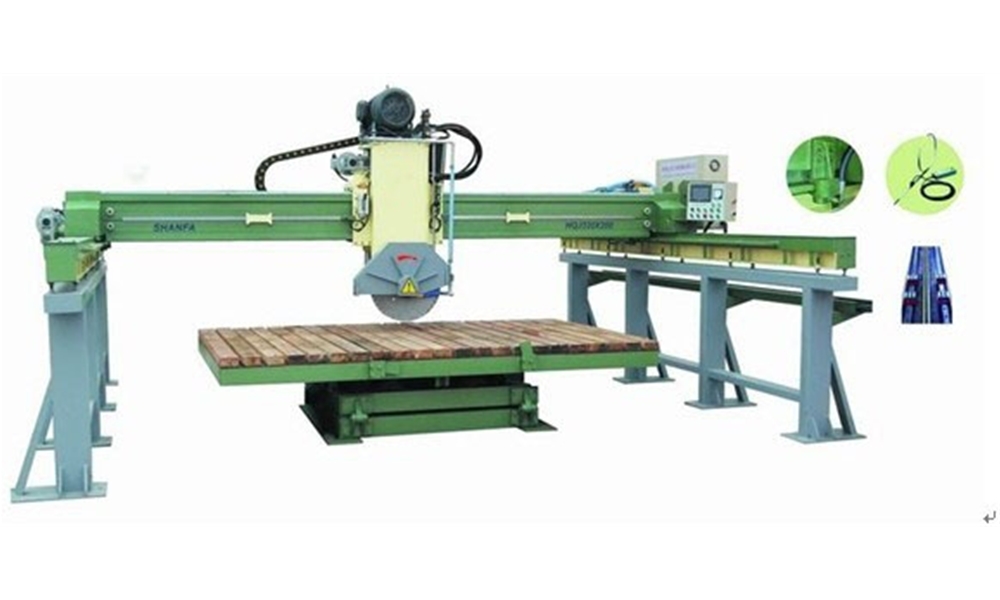

Name：QQ320*220 Infrared four-column type bridge cutting machine
Details
It adopts PLC control and automatic positioning techniques for various moves of the cutter frame & linear rolling guide driving,magnetic ruling,laser device setting.It is consists of high quality steel. The platform can be 360degree rotatable and automatically trun slate up.It can cut sizeable slabs with high precision and efficiency.| max.blade of diameter | φ400-600mm |
| max.stroke for transverse | 3800mm |
| max.stroke for longitudinal | 3800mm |
| elevation stoke for main shaft of blade | 330mm |
| max.titling degree for work-bench | 87 |
| max.rotation degree for work-bench | 360 |
| location degree for work-bench | 0°- 45°- 90° |
| power of main motor | 18.5kw |
| total power of machine | 23.5kw |
| water consumption | 2m3/h |
| water pressure | >0.2 Mpa |
| overall size for machine | 4800×5816×2350mm |
| otal weight for machine | 5800kg |
|
